S1208L -120 x 80 x 90 cm

GENERAL SPECIFICATIONSS1208L
OUTER DIMENSIONS 1200x800x900 mm 47,25x31,50x35,44 Inch
INNER DIMENSIONS 1160x720x775 mm 45,67x28,35x30,52 Inch
Container Weight 23 kg 51 Pound
Maximum Load Per Container 350 kg 777 Pound
Maximum Number of Container per Stack 6 6
Static Loading Capacity 4000 kg 8.888 Pound
Dynamic Loading Capacity 2000 kg 4.444 Pound
Volume Reducing 1:3 1:3



WALL AND PALLET SPECIFICATIONS
Wall 10 mm HEXAPAN 3000 gsm 100% PP
Pallet and Its Cover Twinsheet extruded HPDE
Loading Cover 1 unit 1200 mm loading cover at the side



RETURN RATE
HEXAPAK - Full Truck 102
HEXAPAK - Empty Truck 510

S1210L - 120 x 100 x 90 cm

GENERAL SPECIFICATIONSS1210L
Outer Dimensions 1200 x 1000 x 900 mm 47,25x39,38x35,44 Inch
Inner Dimensions 1160 x 960 x 775 mm 45,67x37,80x30,52 Inch
Container Weight 25 kg 55 Pound
Maximum Load Per Container 350 kg 777 Pound
Maximum Container Number Per Stack 6 6
Static Loading Capacity 4000 kg 8.888 Pound
Dynamic Loading Capacity 2000 kg 4.444 Pound
Volume Reducing 1:4 1:4




Wall And Pallet Specification
Wall 10 mm HEXAPAN 3000 gsm 100% PP
Pallet and Its Cover Twinsheet Extruded HPDE
Loading Cover 1 unit 1200 mm Loading Cover At The Side



Return Rate
HEXAPAK - Full Truck 78
HEXAPAK - Empty Truck 286

SEPERATOR / DIVIDER





SEPERATOR: Preventing the sensitive materials from physical damage by using our seperators.

S1612L - 160 x 120 x 75 cm

GENERAL SPECIFICATIONSS1612L
OUTER DIMENSIONS 1600x1200x750 mm  59,56x45,28x39,38 Inch
INNER DIMENSIONS 1550x1140x590 mm  57,09x42,92x33,08 Inch
Container Weight 40 kg  88 Pound
Maximum Load Per Container 450 kg  990 Pound
Maximum Container Number per Stack 4  4
Static Loading Capacity 3000 kg  6.600 Pound
Dynamic Loading Capacity 1500 kg  3.300 Pound
Volume Reducing 1:3  1:3




WALL AND PALLET SPECIFICATIONS
Wall 10 mm HEXAPAN 3000 gsm 100% PP
Pallet and Its Cover Twinsheet extruded HPDE
Loading Cover 1 unit 1200 mm loading cover at the side



RETURN RATE
HEXAPAK - Full Truck 78
HEXAPAK - Empty Truck 286

COLD STORAGE

PES LAMINATION: Pes lamination which can protect the products from deterioration in cold temperatures up to -20 degrees.

SMART LOCK









SMART LOCK: By using the smart lock technology we offer the best way to make all the parts reachable and easy to connect.

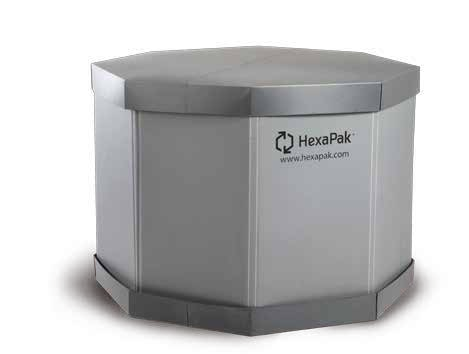

OCTAPAK

GENERAL SPECIFICATIONSOctapak
OUTER DIMENSIONS 1000x1150x1110 mm 39,38x45,28x43,71 Inch
INNER DIMENSIONS -
Container Weight 25 kg 55 Pound
Maximum Load Per Container 350 kg 777 Pound
Maximum Container Number per Stack 4 4
Static Loading Capacity 4000 kg 8.888 Pound
Dynamic Loading Capacity 2000 kg 4.444 Pound
Volume Reducing 1:4 1:4




WALL AND PALLET SPECIFICATIONS
Wall 10 mm HEXAPAN 3000 gsm 100% PP
Pallet and Its Cover -
Loading Cover -



RETURN RATE
HEXAPAK - Full Truck 78
HEXAPAK - Empty Truck 286

PALLET LID STRUCTURE

 PALLET AND LID STRUCTURE: Four different options according to your budget. This options are; twinsheet, singlesheet, injection and metal supported pallet.

  Twinsheet Single sheet Injection Metal Supported
Loading Capacity XXX X XX XXXX (X: Min, XXXX: Max)
Darbe Dayanımı XXX X XX XXXX (X: Min, XXXX: Max)
Recycling -
Weight XX X XXX XXXX (X: Min, XXXX: Max)
Price XXX X XX XXXX (X: Starts From, XXXX: Max)





HANDLING ZONE



HANDLING ZONE: Handy handlings which allow you to carry the whole container by a single person.

LOCKING SYSTEM



LOCKING SYSTEM: Minimizing the unintentional damage caused by toppling and shaking during the transportation period.

LOADING DOOR






LOADING DOOR: Adjusting the height by considering your workers' ergonomic requirements. Our standard measures are 610x280 mm and 845x300 mm. We have two options for the lock on the loading doors such as velcro and injection part.

FOLDING TYPE









FOLDING TYPE: As you wish whether M-shape or Z-shape we offer the freedom of choice for the maximum efficiency.

PALLET AND LID FOLDING





PALLET AND LID FOLDING: Reducing the transportation expenses by %80 simply by using the pallet and lid folding.

LABELLING







LABELLING: Sharing the required information with your suppliers by using our labelling feature.

PRINTING





PRINTING: Where our logo and yours are such good company ! Benefiting from the most efficient printing technology which could cause no more container loss and no more confusion.

RUNNER





RUNNER: Providing the best solution in order to improve the shelf system significantly.

ESD



ESD: Safely transporting all kinds of electronic devices by using our special anti-ESD feature.

OPEN BORDER

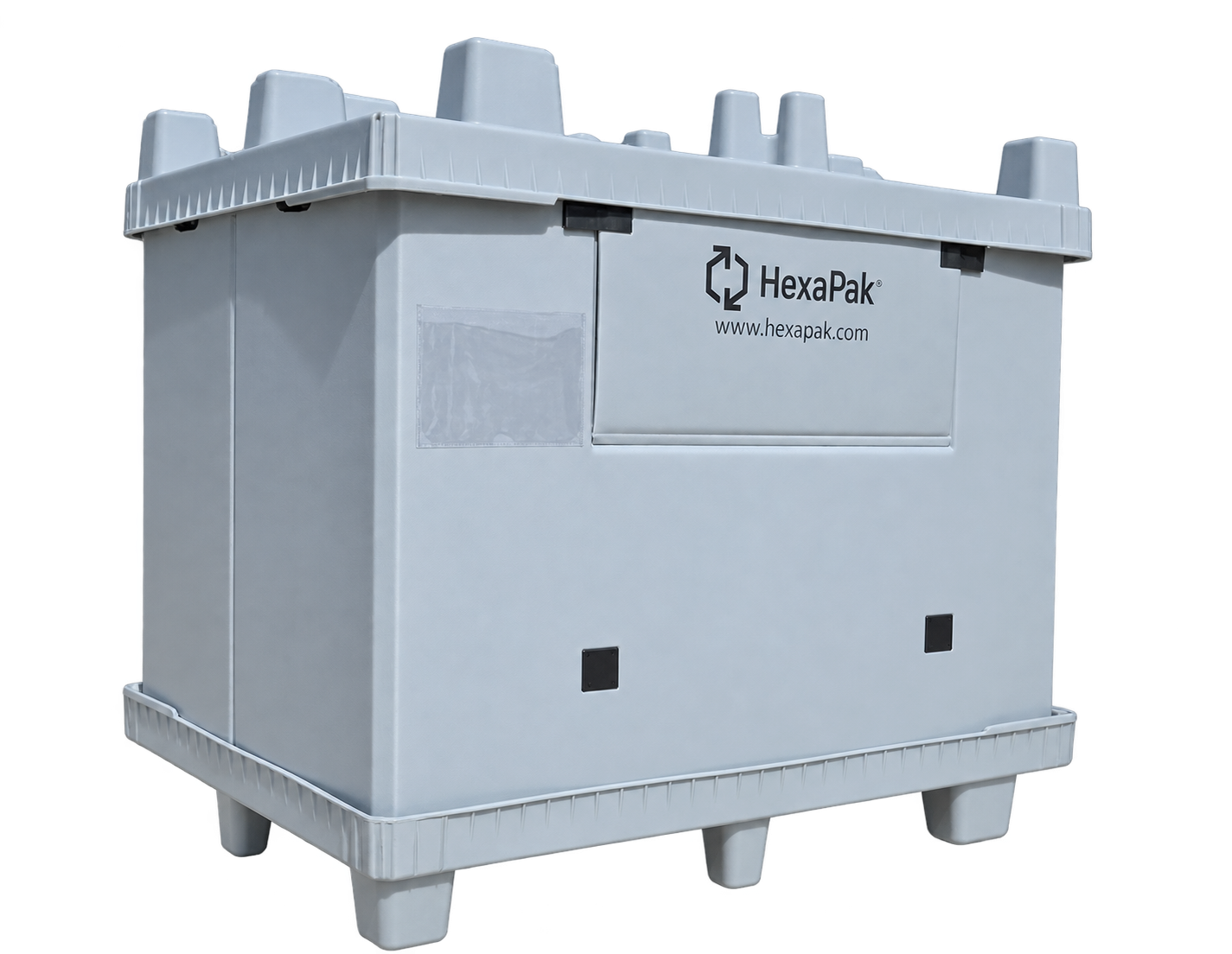

S1511.5L - 150 x 115 x 100 cm

GENERAL SPECIFICATIONSS1512L
OUTER DIMENSIONS 1500x1150x1000 mm  59,56x45,28x39,38 Inch
INNER DIMENSIONS 1450x1090x840   mm  57,09x42,92x33,08 Inch
Container Weight 40 kg  88 Pound
Maximum Load Per Container 450 kg  990 Pound
Maximum Container Number per Stack 4  4
Static Loading Capacity 3000 kg  6.600 Pound
Dynamic Loading Capacity 1500 kg  3.300 Pound
Volume Reducing 1:3  1:3




WALL AND PALLET SPECIFICATIONS
Wall 10 mm HEXAPAN 3000 gsm 100% PP
Pallet and Its Cover Twinsheet extruded HPDE
Loading Cover 1 unit 1200 mm loading cover at the side



RETURN RATE
HEXAPAK - Full Truck 78
HEXAPAK - Empty Truck 286



SHEET ON THE PALLET
